The professional DxTron Ø30 mm Drain Cleaning Attachment Set is designed for demanding cleaning, unclogging, and maintenance work in larger drain and sewer systems.
The kit contains 6 specialized working attachments, enabling different stages of the cleaning process – from penetrating and locating blockages to cutting, scraping, and thoroughly cleaning the internal pipe walls.
The large working attachments and robust Ø30 mm connection make the set particularly suitable for larger-diameter drain cleaning cables and machines used in professional sewer and drain maintenance.
The steel construction of the attachments provides good resistance to mechanical loads occurring during drain cleaning work. The included installation wrench allows quick and convenient replacement of individual attachments.
The Professional Ø30 mm set is suitable for cleaning vertical stacks, collectors, larger drains, and sewer pipes where stronger and larger working tools are required.
Applications
- Mechanical cleaning and unclogging of larger drain and sewer pipes
- Cleaning vertical drainage stacks and sewer collectors
- Removing grease and organic deposits
- Breaking down hard and calcified deposits
- Removing fibrous materials and compact obstructions
- Removing small roots
- Mechanical cleaning of internal pipe walls
- Professional plumbing and sewer maintenance work
Compatibility
- Connection type: Ø30 mm
- Compatible with DxTron Ø30 mm drain cleaning cables
- Suitable for compatible manual and electric drain cleaning machines
- Designed primarily for larger drain and sewer pipes and professional service applications

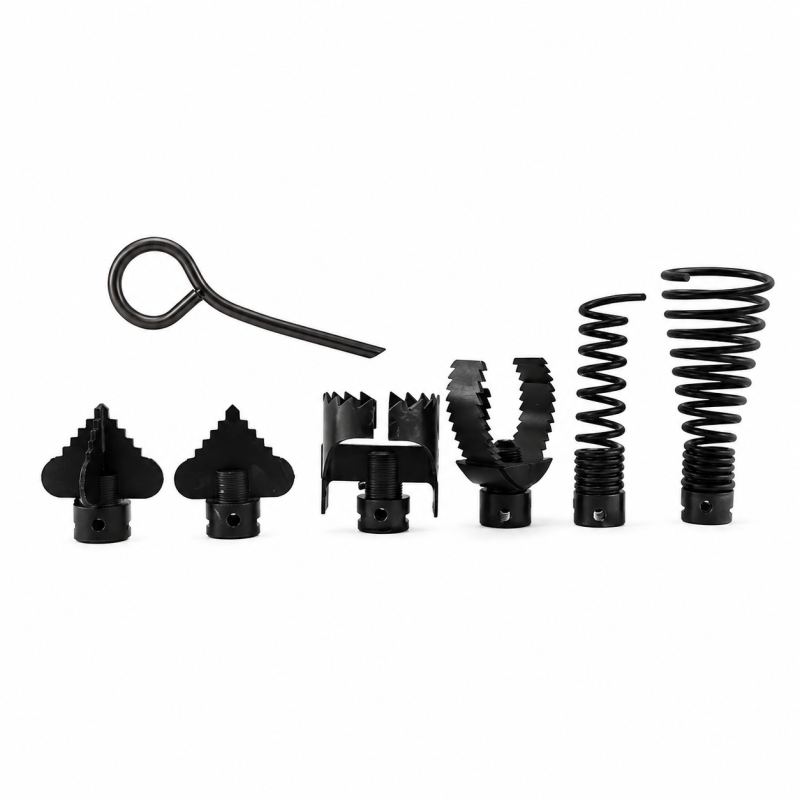

Set Contents – 6 Working Attachments
1. Large Spiral Auger
A large flexible attachment designed for locating blockages, catching fibrous materials, and creating an initial passage through an obstruction.
Its larger spiral diameter makes it particularly suitable for larger drain and sewer pipes.
2. Small Spiral Auger
A narrower spiral attachment designed for penetrating blockages and catching debris inside the pipe.
Its smaller diameter makes it easier to create an initial passage through more compact obstructions.
3. Wide Cleaning Cutter
A wide working attachment designed for mechanical removal of deposits, grease, and other contamination accumulated on the internal pipe walls.
4. Expanding Cutter
An attachment equipped with expanding cutting elements, designed for intensive cleaning of pipe walls and removal of hard and compact deposits.
5. Multi-Blade Cutter
A multi-edge cutting attachment designed for breaking down hard deposits, calcified build-up, and other difficult obstructions inside the pipe.
6. Cross / Four-Blade Cutter
A robust working attachment designed for mechanical cutting and breaking down compact obstructions inside drain and sewer pipes.
Installation Wrench
Allows quick installation, removal, and replacement of the working attachments.
Construction and Technical Specifications
- Number of working attachments: 6 pcs
- Installation wrench: 1 pc
- Material: steel
- Connection type: Ø30 mm
- Compatibility: Ø30 mm drain cleaning cables
- Intended use: mechanical drain and sewer cleaning
- Application: professional and service use
- Construction: designed for work in larger drain and sewer pipes
Features and Benefits
- 6 different working attachments in one set
- Wide range of applications in professional drain and sewer cleaning
- Allows the operator to select a tool according to the type of blockage
- Attachments for penetrating, cutting, scraping, and cleaning
- Robust steel construction
- Ø30 mm connection designed for heavier service work
- Compatible with DxTron Ø30 mm drain cleaning cables
- Installation wrench included
- Quick and convenient attachment replacement
- Effective mechanical cleaning without the need for aggressive chemical drain cleaners
Operating Recommendations
- Before starting work, select an attachment suitable for the type of blockage and pipe diameter.
- For completely blocked pipes, it is recommended to begin with a spiral auger to create an initial passage.
- Larger cutters should preferably be used after an initial passage has been created.
- Do not use an attachment larger than the internal pipe diameter allows.
- When using larger cutters, increase the machine load gradually.
- After use, clean all attachments thoroughly.
- Lightly protect metal components with suitable maintenance oil.
- Store in a dry place protected from moisture and corrosion.
Package Contents
- 1 × large spiral auger
- 1 × small spiral auger
- 1 × wide cleaning cutter
- 1 × expanding cutter
- 1 × multi-blade cutter
- 1 × cross / four-blade cutter
- 1 × installation wrench
The price applies to one complete DxTron Professional set: 6 working attachments + installation wrench for Ø30 mm drain cleaning cables.
