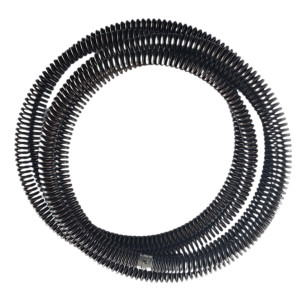

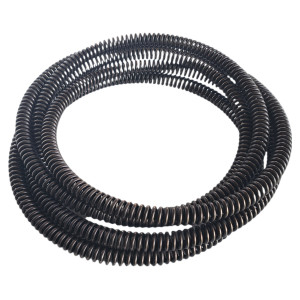

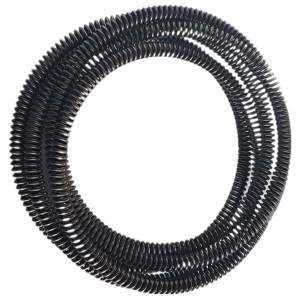

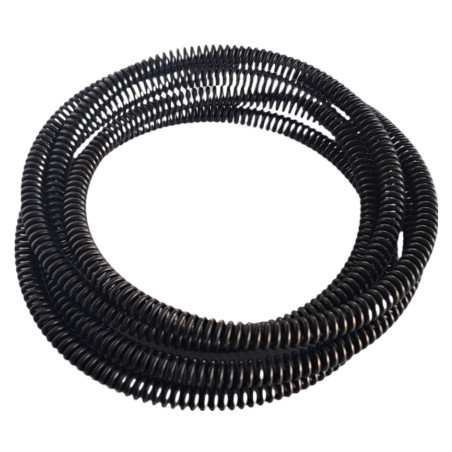

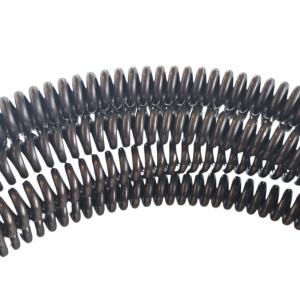

The DxTron Ø22 mm Standard Drain Cleaning Cable – 5 m section is a single cable segment designed for mechanical cleaning and unclogging of larger drain and sewer pipes.
The cable is made from spring steel with a 4 mm wire thickness, providing a good balance between flexibility, strength, and resistance to deformation during operation.
The 5 meter section can be used as part of an existing set or to extend it by connecting additional compatible DxTron Ø22 mm Standard sections.
The DxTron Ø22 mm Standard 5 m is a single sectional drain cleaning cable designed for regular installation, maintenance, and service work.
With its Ø22 mm cable diameter, it is intended for larger drain and sewer pipes. The 4 mm wire thickness provides sufficient flexibility for guiding the cable through the installation while maintaining the rigidity required for effective torque transmission to the working attachment.
The sectional construction allows the working length to be adjusted to the specific task. Each section is 5 m long and can be connected with additional compatible DxTron Ø22 mm Standard sections.
Precisely manufactured male and female connectors allow quick connection of individual sections and compatibility with suitable Ø22 mm working attachments.
The product is supplied as one 5 m cable section without a carrying basket.
Applications
Mechanical cleaning and unclogging of drain and sewer pipes
Cleaning larger-diameter drainage pipes
Removing common blockages and accumulated deposits
Maintenance and service work
Extending an existing DxTron Ø22 mm Standard set
Replacing a single worn cable section
Cleaning internal and external drainage systems
Use in residential, commercial, and industrial installations
Suitable for pipes with diameters of approx. 50–200 mm
Compatibility
Cable diameter: Ø22 mm
Compatible with DxTron Ø22 mm Standard sections
Compatible with suitable working attachments designed for Ø22 mm systems
Suitable for compatible manual and electric drain cleaning machines
When combining with components from other manufacturers, the connector type and dimensions should be checked beforehand
Technical Specifications
Brand: DxTron
Series: Standard
Cable diameter: Ø22 mm
Section length: 5 m
Wire thickness: 4 mm
Weight: approx. 4.3 kg
Material: high-durability spring steel
Connectors: DxTron male / female system
Catalogue number: DX-2240-1
Recommended pipe diameter: approx. 50–200 mm
Carrying basket: not included

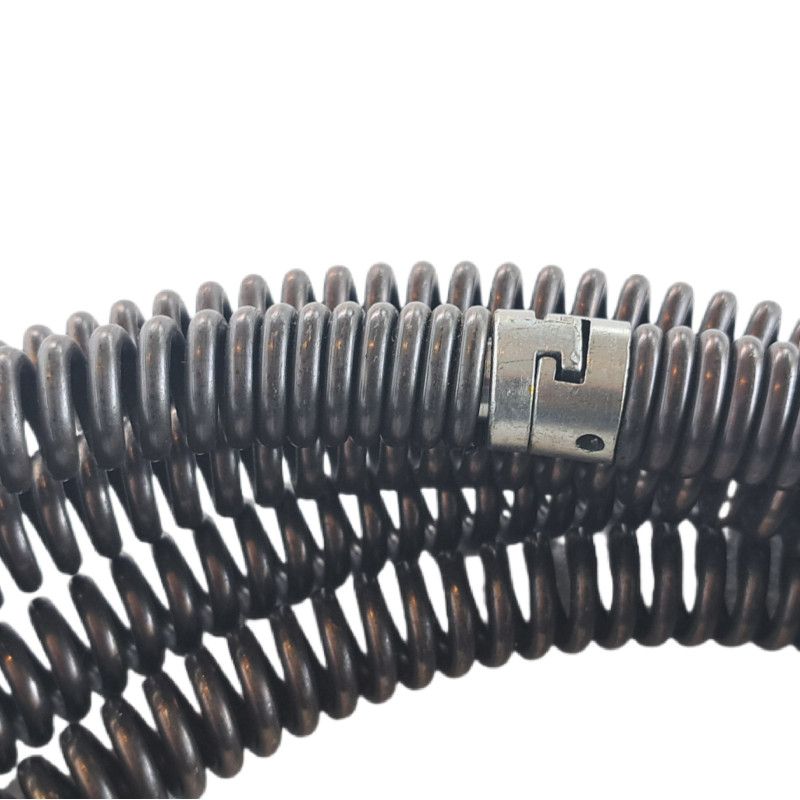

Connector Dimensions
Female Connection
A: 11.20 mm
B: 6.50 mm
C: 22 mm
Male Connection
E: 11 mm
F: 7 mm
Before combining the cable with components from other systems or manufacturers, the actual connector dimensions and design should be checked.
Features and Benefits
Single 5 m cable section
Cable diameter: Ø22 mm
4 mm wire thickness
Made from spring steel
Good balance between flexibility and rigidity
Can be used to extend an existing set
Can replace a single worn cable section
Quick connection with additional compatible sections
Compatible with suitable Ø22 mm working attachments
Convenient handling for shorter working lengths
Suitable for regular plumbing and service work
Operating Recommendations
Before starting work, select a working attachment suitable for the type of blockage and pipe diameter.
Before operating the machine, make sure the cable section is securely connected to the next section or working attachment.
Add additional sections gradually as more working length is required.
Do not excessively bend or overload the cable.
When passing through pipe bends, work gradually and monitor the load.
If the cable becomes stuck, stop feeding it forward and carefully withdraw it.
After use, clean and dry the cable thoroughly.
Periodically protect the metal components with a suitable maintenance oil.
Store in a dry place protected from moisture and corrosion.
Package Contents
1 × DxTron Ø22 mm Standard drain cleaning cable section, 5 m
The price applies to one DxTron Ø22 mm Standard drain cleaning cable section with a length of 5 m. The carrying basket is not included.
Before using the product, read the instruction manual and the following safety information.
• Use the product only for its intended purpose and in accordance with the manufacturer’s instructions. • Before each use, check the product for damage, wear or missing components. • Do not use the product if it is damaged or does not operate correctly. • Keep the product out of the reach of children unless it is specifically intended for use by children. • When using the product, wear appropriate personal protective equipment, such as protective gloves, safety glasses, protective clothing or hearing protection, where required. • Do not modify or alter the product. • Products containing electrical components must only be connected to a compatible and properly functioning power supply. • Do not use electrical equipment in wet or damp conditions unless it is specifically designed for such use. • Store the product in a dry and safe place, away from excessive moisture, high temperatures and direct sunlight. • Dispose of the product at an appropriate collection point or in accordance with applicable local regulations.
For questions concerning the safety or correct use of the product, contact the manufacturer, importer or the responsible person in the European Union indicated in the “Responsible Person in the EU” tab.
