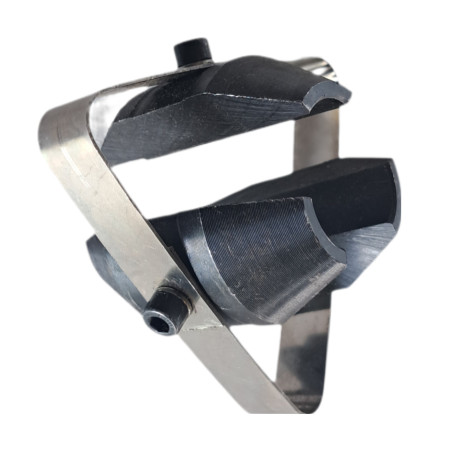

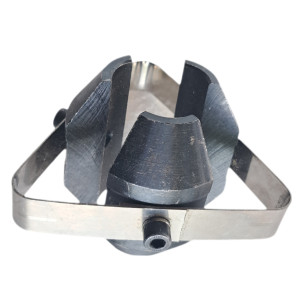

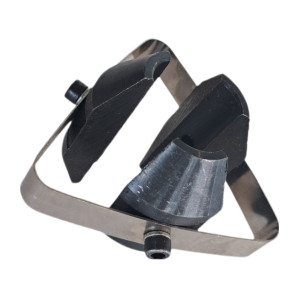

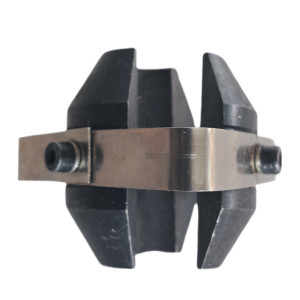

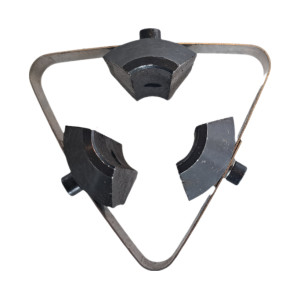

The DxTron Ø16 mm clutch / clamping jaws are designed to securely grip a Ø16 mm drain cleaning cable and transfer torque from the electric drain cleaning machine to the cable.
The clamping element is made of cast iron and is intended primarily for the DxTron DX-2316 drain cleaning machine as well as other compatible machines using the same clamping system.
The DxTron Ø16 mm clutch / clamping jaws are a key working component of an electric drain cleaning machine.
Its main function is to clamp onto the Ø16 mm drain cleaning cable and transfer rotational force from the machine mechanism to the cable. This allows controlled rotation of the cable during mechanical drain and sewer cleaning.
The clutch works together with the machine's lever mechanism. When engaged, the jaws grip the cable; when released, the cable can be moved or repositioned.
The clamping element is made of cast iron, making it suitable for the mechanical loads generated during drain cleaning work.
The product is intended primarily as a replacement or service part for the DxTron DX-2316.
Applications
The clutch is intended for:
gripping Ø16 mm drain cleaning cables,
transferring torque from the machine to the cable,
use in electric drain cleaning machines,
replacement of worn or damaged clamping components,
maintenance and servicing of drain cleaning equipment,
professional and service applications.
The source documentation specifies use with Ø16 mm cables in the DxTron DX-2316 and notes compatibility with other suitable drain cleaning machines.
Compatibility
DxTron DX-2316
Ø16 mm drain cleaning cables
other machines using a compatible clamping mechanism
When installing the clutch in equipment from another manufacturer, check the dimensions, mounting method and mechanism design before purchase.
Do not rely solely on the cable diameter when determining compatibility.
Construction and Technical Specifications
Brand: DxTron
Component type: clutch / clamping jaws
Size: Ø16 mm
Designed for: Ø16 mm drain cleaning cables
Clamping element material: cast iron
Function: cable clamping and torque transmission
Primary compatibility: DxTron DX-2316
Application: electric drain cleaning machines.
Dimensions

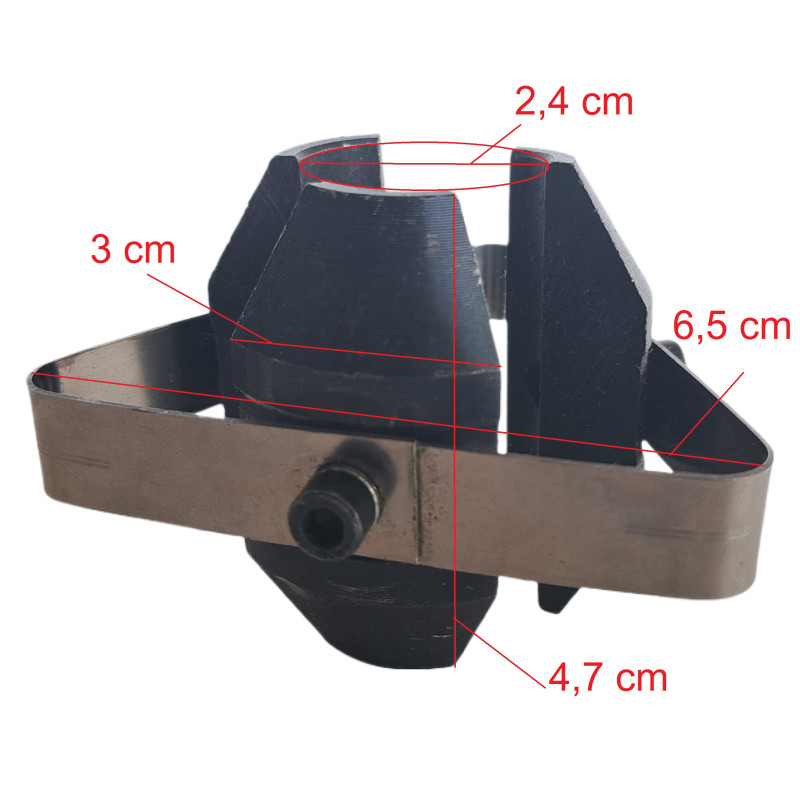

Based on the technical image:
overall width: approx. 6.5 cm
overall height: approx. 4.7 cm
central section width: approx. 3 cm
upper section diameter / spacing: approx. 2.4 cm
The dimensions should be treated as reference values when checking compatibility with a machine.
Features and Benefits
designed for Ø16 mm drain cleaning cables,
secure mechanical cable grip,
effective torque transmission,
cast iron construction,
quick cable clamping and release via the machine mechanism,
replacement part for the DxTron DX-2316,
may also fit other compatible drain cleaning machines,
simple design suitable for service replacement.
The source material highlights secure cable grip, easy clamping operation and solid construction as the main product advantages.
Operating Recommendations
inspect the clutch and clamping mechanism before installation,
make sure the clutch is correctly seated in the machine,
do not use a damaged, cracked or excessively worn component,
check during operation that the cable does not slip inside the jaws,
do not use a cable diameter other than the size intended for the clutch,
inspect the clamping surfaces after intensive use,
disconnect the machine from the power supply before servicing.
Before using the product, read the instruction manual and the following safety information.
• Use the product only for its intended purpose and in accordance with the manufacturer’s instructions. • Before each use, check the product for damage, wear or missing components. • Do not use the product if it is damaged or does not operate correctly. • Keep the product out of the reach of children unless it is specifically intended for use by children. • When using the product, wear appropriate personal protective equipment, such as protective gloves, safety glasses, protective clothing or hearing protection, where required. • Do not modify or alter the product. • Products containing electrical components must only be connected to a compatible and properly functioning power supply. • Do not use electrical equipment in wet or damp conditions unless it is specifically designed for such use. • Store the product in a dry and safe place, away from excessive moisture, high temperatures and direct sunlight. • Dispose of the product at an appropriate collection point or in accordance with applicable local regulations.
For questions concerning the safety or correct use of the product, contact the manufacturer, importer or the responsible person in the European Union indicated in the “Responsible Person in the EU” tab.
