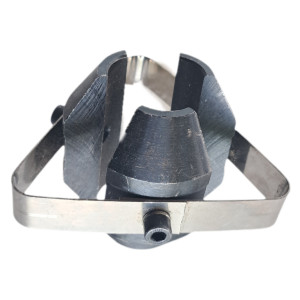

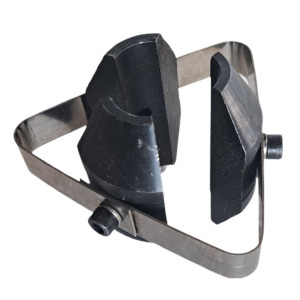

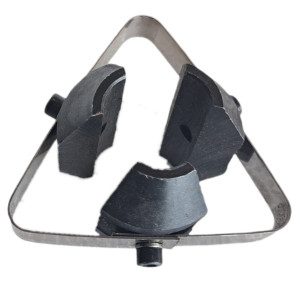

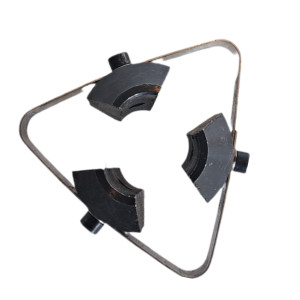

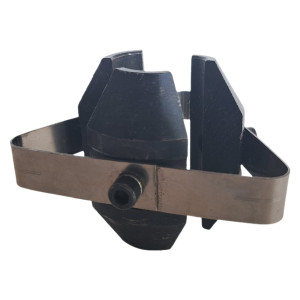

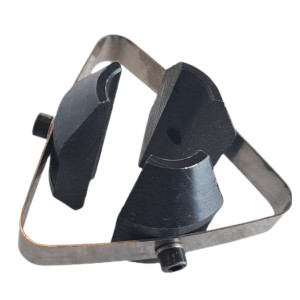

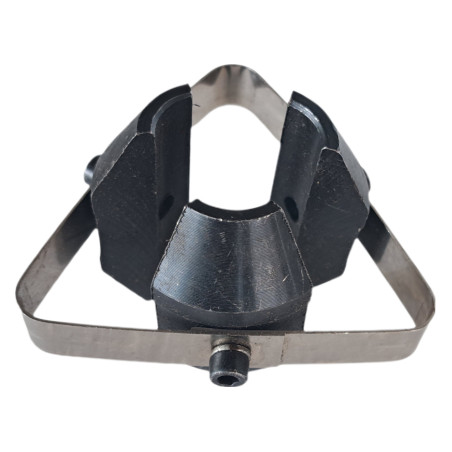

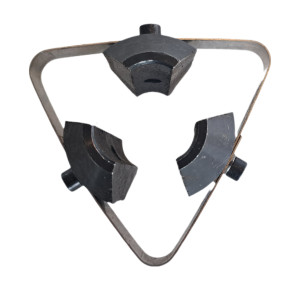

The DxTron Ø22 mm clutch / clamping jaws are designed to securely grip a Ø22 mm drain cleaning cable and transfer torque from the electric drain cleaning machine to the cable during mechanical drain and sewer cleaning.
The product is intended primarily for the DxTron DX-2322 as well as other compatible machines using the same clamping mechanism.
The DxTron Ø22 mm clutch is a key working component of an electric drain cleaning machine.
Its main function is to mechanically clamp onto a Ø22 mm drain cleaning cable and transfer rotational force from the machine to the cable. This allows controlled rotation of the cable during mechanical drain and sewer cleaning.
The clutch works together with the machine's lever mechanism. When engaged, the jaws grip the cable and transfer torque; when released, the cable can be moved or repositioned.
The product is intended primarily as a replacement or service part for the DxTron DX-2322.
Depending on the available version, the clamping element may be made of cast iron or steel.
Applications
The clutch is intended for:
working with Ø22 mm drain cleaning cables,
clamping the cable inside an electric drain cleaning machine,
transferring torque from the machine to the cable,
replacing a worn or damaged clamping component,
servicing mechanical drain cleaning equipment,
use with the DxTron DX-2322,
professional and service applications.
The source material also specifies use in drain and sewer systems with diameters of approximately 50–200 mm, depending on the overall working configuration.
Compatibility
DxTron DX-2322
Ø22 mm drain cleaning cables
other machines using a compatible clamping mechanism
When installing the clutch in equipment from another manufacturer, compare:
component dimensions,
mounting method,
mechanism design,
lever operation.
Compatibility should not be determined solely by the drain cleaning cable diameter.
Construction and Technical Specifications
Brand: DxTron
Component type: clutch / clamping jaws
Size: Ø22 mm
Designed for: Ø22 mm drain cleaning cables
Function: cable clamping and torque transmission
Primary compatibility: DxTron DX-2322
Clamping element material: cast iron or steel, depending on version
Application: electric drain cleaning machines.

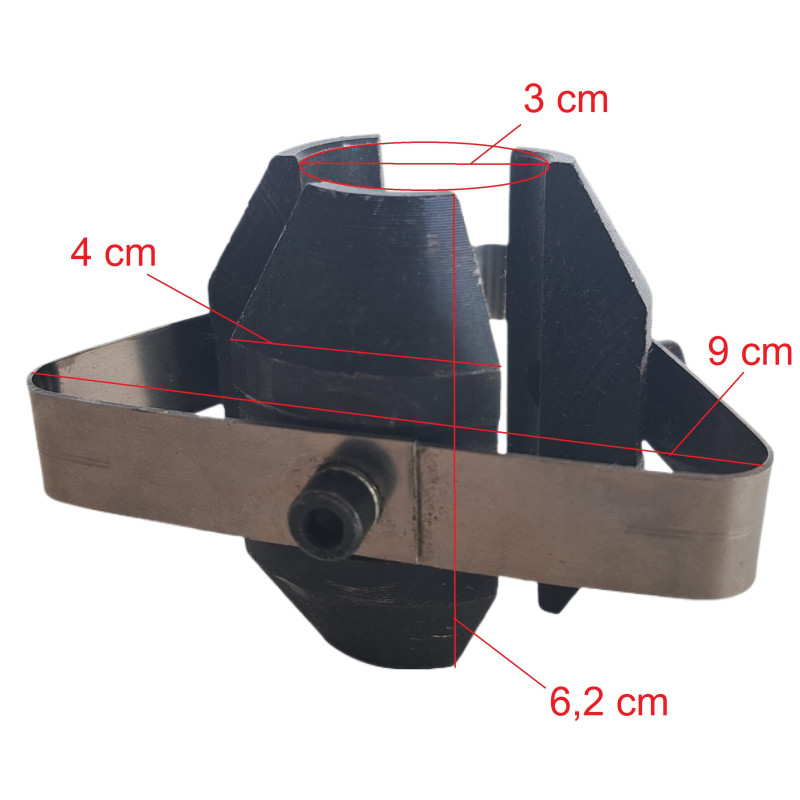

Dimensions
Based on the technical image:
overall width: approx. 9 cm
overall height: approx. 6.2 cm
central section width: approx. 4 cm
upper section diameter / spacing: approx. 3 cm
These dimensions should be treated as reference values when checking compatibility with another machine.
Features and Benefits
designed for Ø22 mm drain cleaning cables,
secure mechanical cable grip,
effective torque transmission,
quick cable clamping and release,
replacement part for the DxTron DX-2322,
may also fit other compatible drain cleaning machines,
robust construction intended for intensive use,
simple design suitable for service replacement,
larger construction adapted for Ø22 mm drain cleaning cables.
The source material highlights secure cable grip, easy operation and solid construction as the main advantages.
Operating Recommendations
inspect the clutch and machine mechanism before installation,
make sure the component is correctly seated,
do not use a cracked, damaged or excessively worn clutch,
check during operation that the cable does not slip inside the jaws,
use only the cable diameter intended for this clutch,
inspect the clamping surfaces regularly,
disconnect the machine from the power supply before replacement or servicing,
Before using the product, read the instruction manual and the following safety information.
• Use the product only for its intended purpose and in accordance with the manufacturer’s instructions. • Before each use, check the product for damage, wear or missing components. • Do not use the product if it is damaged or does not operate correctly. • Keep the product out of the reach of children unless it is specifically intended for use by children. • When using the product, wear appropriate personal protective equipment, such as protective gloves, safety glasses, protective clothing or hearing protection, where required. • Do not modify or alter the product. • Products containing electrical components must only be connected to a compatible and properly functioning power supply. • Do not use electrical equipment in wet or damp conditions unless it is specifically designed for such use. • Store the product in a dry and safe place, away from excessive moisture, high temperatures and direct sunlight. • Dispose of the product at an appropriate collection point or in accordance with applicable local regulations.
For questions concerning the safety or correct use of the product, contact the manufacturer, importer or the responsible person in the European Union indicated in the “Responsible Person in the EU” tab.
