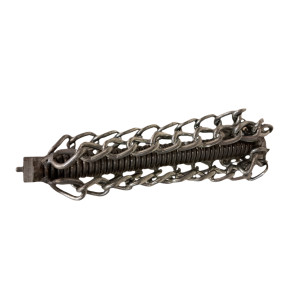

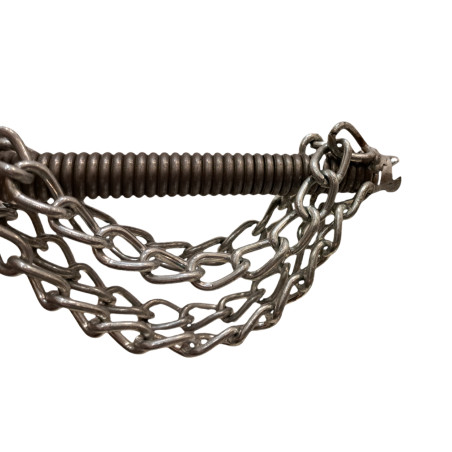

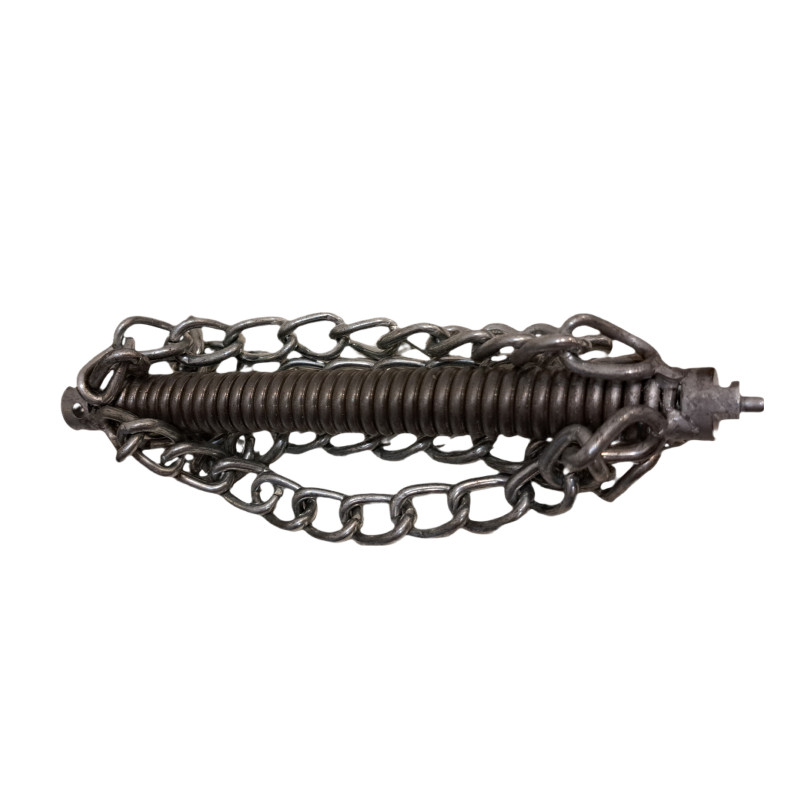

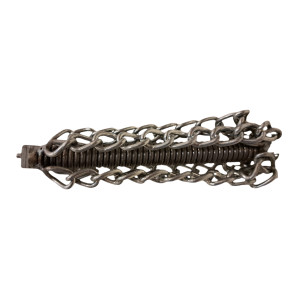

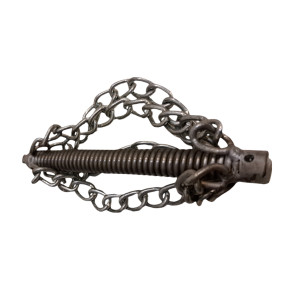

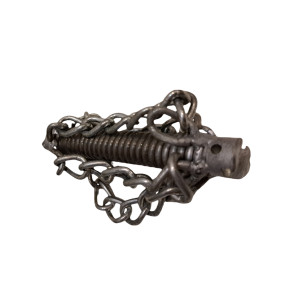

The DxTron 18 cm Drain Cleaning Chain Head with 4 chains, a 15 cm chain span, and a 16 mm connection is the most powerful model in the series, designed for cleaning large drain and sewer pipes with diameters of 130–200 mm.
Four cleaning chains and an extended body provide maximum cleaning performance when removing hard deposits, limescale, grease, and other stubborn contamination. Compatible with Ø16 mm drain cleaning cables and suitable for use with manual and electric drain cleaning machines.
The professional DxTron Drain Cleaning Chain Head, with an overall length of 18 cm and a chain span of 15 cm, has been designed for intensive cleaning of large drain and sewer pipes, vertical stacks, inspection chambers, and technical drainage systems.
It is the most powerful variant in the range, intended for demanding professional, service, and industrial applications.
The use of four cleaning chains allows effective and even cleaning around the entire internal circumference of the pipe. The head efficiently removes hard deposits, limescale, grease, biological build-up, and roots, helping restore proper flow and cleanliness inside the drainage system.
The extended 18 cm body improves working stability and tool control in straight pipe sections and gentle bends. The standard 16 mm connection ensures compatibility with DxTron Ø16 mm drain cleaning cables as well as manual and electric drain cleaning machines equipped with the same connection system.
The body is manufactured from high-quality hardened steel, providing excellent resistance to wear, twisting, deformation, and intensive professional use.
Applications
Cleaning large drain and sewer pipes, vertical stacks, and inspection chambers
Maintenance and servicing of PVC, PP, cast iron, and steel drainage systems
Removal of hard deposits, limescale, grease, biological build-up, and roots
Cleaning straight pipe sections and gentle bends
Professional and industrial drain cleaning applications
Compatibility
Connection / shank size: 16 mm
Compatible with DxTron Ø16 mm drain cleaning cables
Suitable for manual and electric drain cleaning machines with a compatible 16 mm connection
Technical Specifications
Head length: 18 cm
Chain span: 15 cm
Number of cleaning chains: 4
Material: high-quality hardened steel
Connection type: 16 mm shank
Weight: approx. 350 g
Recommended pipe diameter: 130–200 mm
Features and Benefits
Four cleaning chains provide intensive cleaning around the full circumference of the pipe
Extended body improves stability and working control
High cleaning performance for hard deposits and limescale
Suitable for large-diameter drain and sewer pipes
Robust construction designed for intensive professional use
Resistant to wear, twisting, and deformation
Quick installation using the standard 16 mm connection
Compatible with the DxTron Ø16 mm drain cleaning system
Operating Recommendations
Before using the chain head, it is recommended to initially clear the pipe with an appropriate cone-shaped auger or boring attachment.
Select the chain head according to the internal diameter and condition of the pipe.
Use primarily in straight pipe sections and gentle bends.
After use, thoroughly clean the chains and working components.
Lightly lubricate the metal parts with a suitable maintenance oil to protect them against corrosion.
Store in a dry place protected from moisture.
Package Contents
1 × DxTron 18 cm Drain Cleaning Chain Head, 4 Chains, 15 cm Chain Span, 16 mm Connection
Before using the product, read the instruction manual and the following safety information.
• Use the product only for its intended purpose and in accordance with the manufacturer’s instructions. • Before each use, check the product for damage, wear or missing components. • Do not use the product if it is damaged or does not operate correctly. • Keep the product out of the reach of children unless it is specifically intended for use by children. • When using the product, wear appropriate personal protective equipment, such as protective gloves, safety glasses, protective clothing or hearing protection, where required. • Do not modify or alter the product. • Products containing electrical components must only be connected to a compatible and properly functioning power supply. • Do not use electrical equipment in wet or damp conditions unless it is specifically designed for such use. • Store the product in a dry and safe place, away from excessive moisture, high temperatures and direct sunlight. • Dispose of the product at an appropriate collection point or in accordance with applicable local regulations.
For questions concerning the safety or correct use of the product, contact the manufacturer, importer or the responsible person in the European Union indicated in the “Responsible Person in the EU” tab.
